·Drilling, milling and tapping function
·Brushless DC Motor
·Touch switch

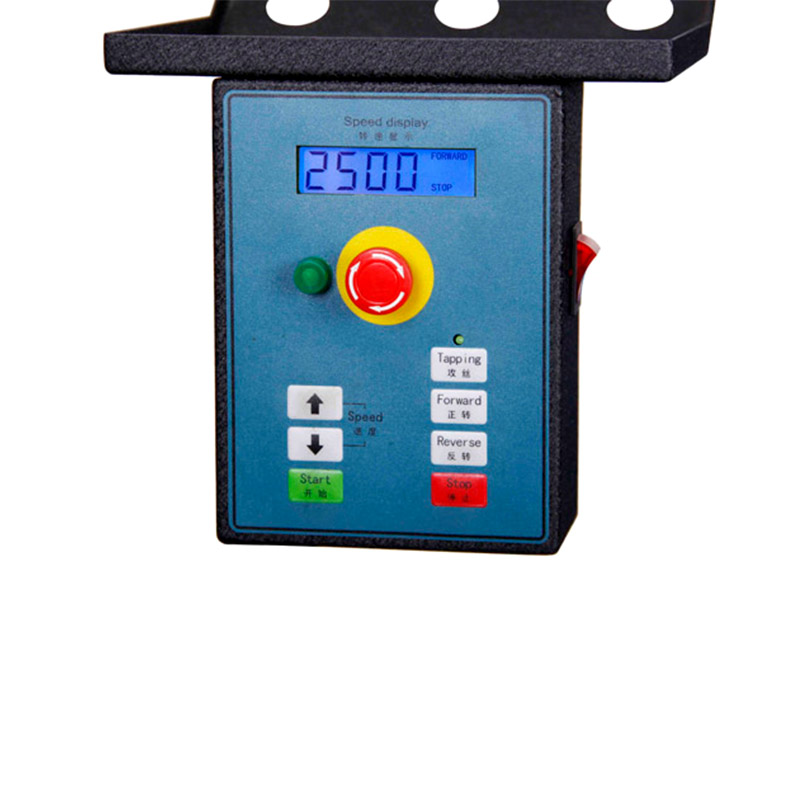

·The spindle speed and feed are digitally displayed and readable
·Infinitely variable spindle speed
·Horizontal (oblique)/fixed depth cutting
·The headstock can be rotated
| Maximum drilling diameter | 16mm |
| Maximum face milling cutter diameter | 30mm |
| Diameter of end mill | 16mm |
| Maximum tapping diameter | 8mm |
| Spindle stroke | 60mm |
| Maximum distance from spindle end to worktable | 320mm |
| Distance from spindle center to column bus | 160mm |
| Spindle taper | MT2/R8 |
| Spindle speed (infinitely variable speed) | 50-2500rpm |
| working desk size | 550*130mm² |
| T-slot size | 8mm |
| Z direction stroke of headstock | 200mm |
| Y travel of worktable | 160mm |
| X travel of worktable | 250mm |
| Motor power, power supply voltage | 550W/220V |
| Net weight, gross weight | 120/150KG |
| Maximum machine size | 750*680*865mm² |
| Random accessories: 13 mm drill chuck wrench kit | |
